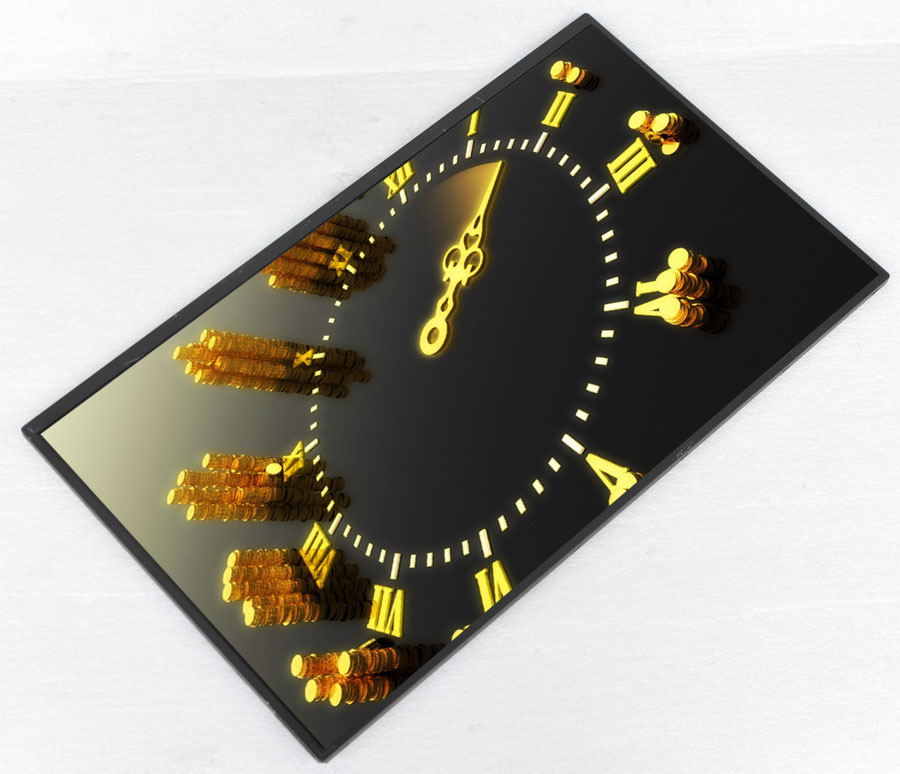

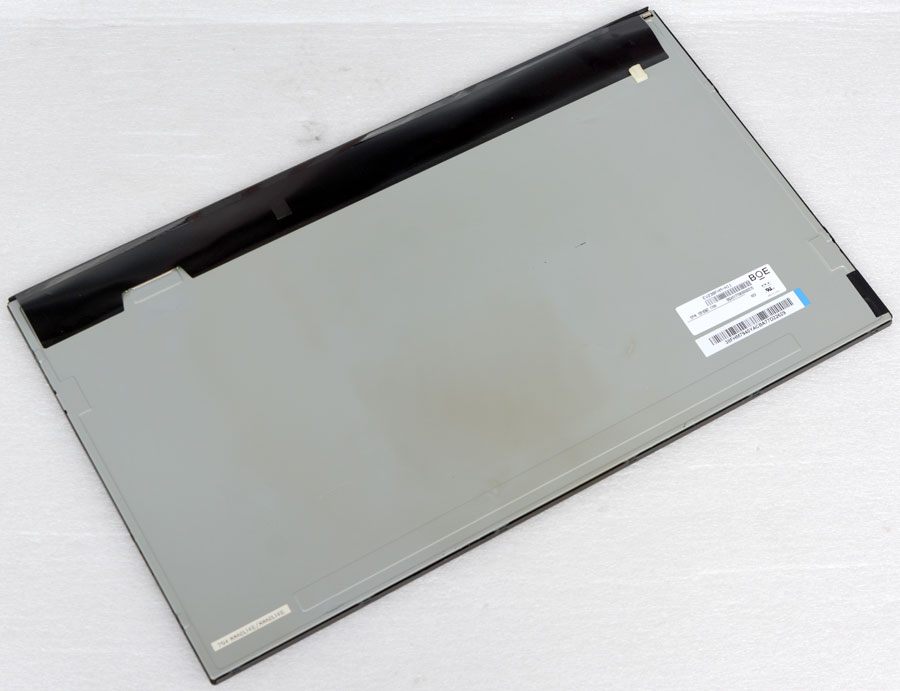

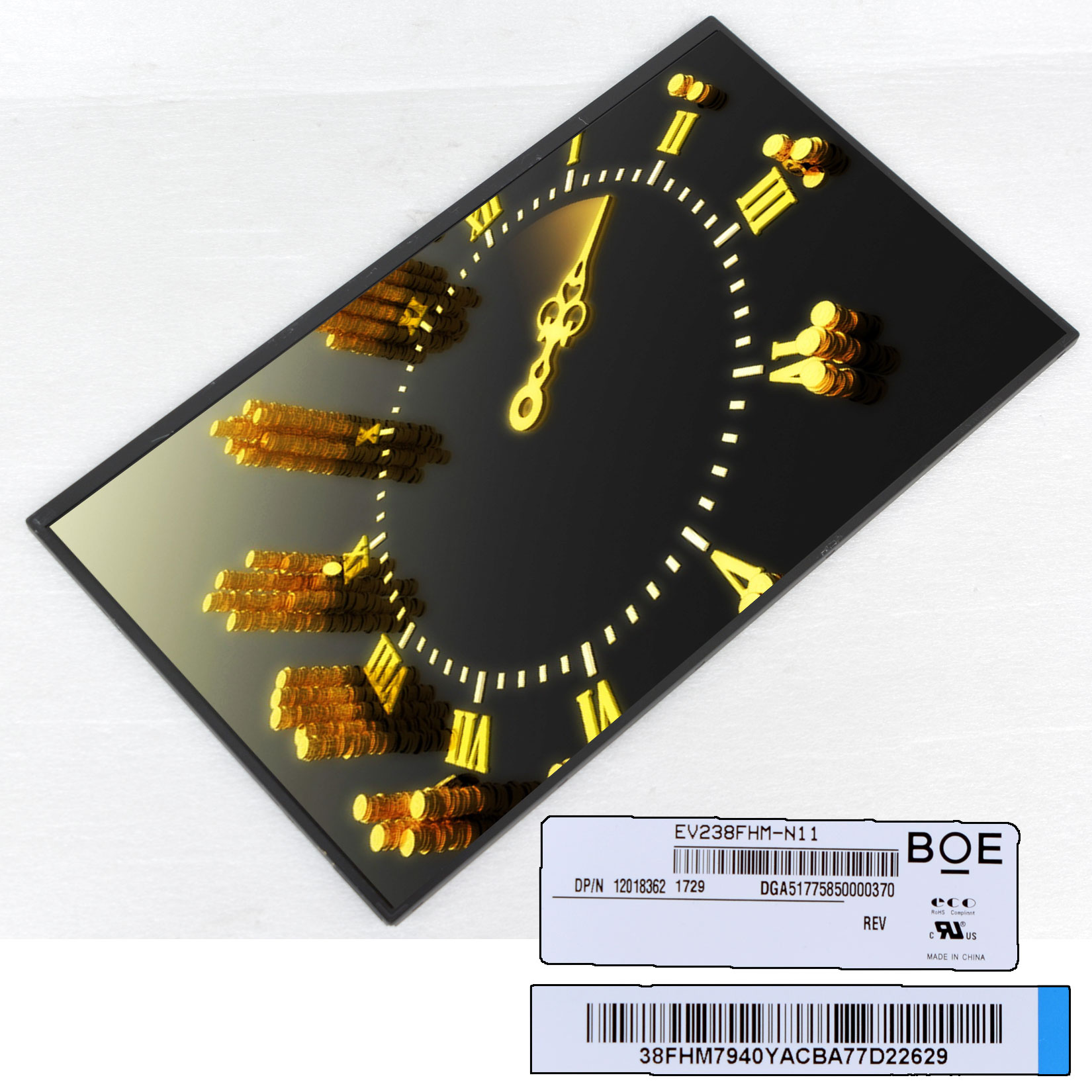

24″ 60,96cm BOE EV238FHM-N11 Display Panel 1920×1080 FHD TFT-LCD 30PIN LVDS M957

Beschreibung

Panel Type: a-Si TFT-LCD (LCM)
Resolution: 1920 × 1080 (Full HD)
Active Area: 527.04 × 296.46 mm
Pixel Density: 92 PPI
Display Mode: Normally Black, Transmissive
Brightness: 300 cd/m² (typical)
Contrast Ratio: 1000:1 (typical)
Viewing Angles: 89°/89°/89°/89° (L/R/U/D)
Color Depth: 16.7 million colors (6-bit + Hi-FRC)
Color Gamut: 74% (CIE1931)
Response Time: 14 ms (typical, G-to-G)
Backlight: WLED, edge-lit (lower edge), lifespan ~30,000 hours
Surface Treatment: Matte with 3H hard coating
Signal Interface: LVDS (2-channel, 6-bit + Hi-FRC), 30-pin
Input Voltage: 5V (typical)
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 60°C
Outline Dimensions: 543.1 × 317.5 × 11.1 mm
