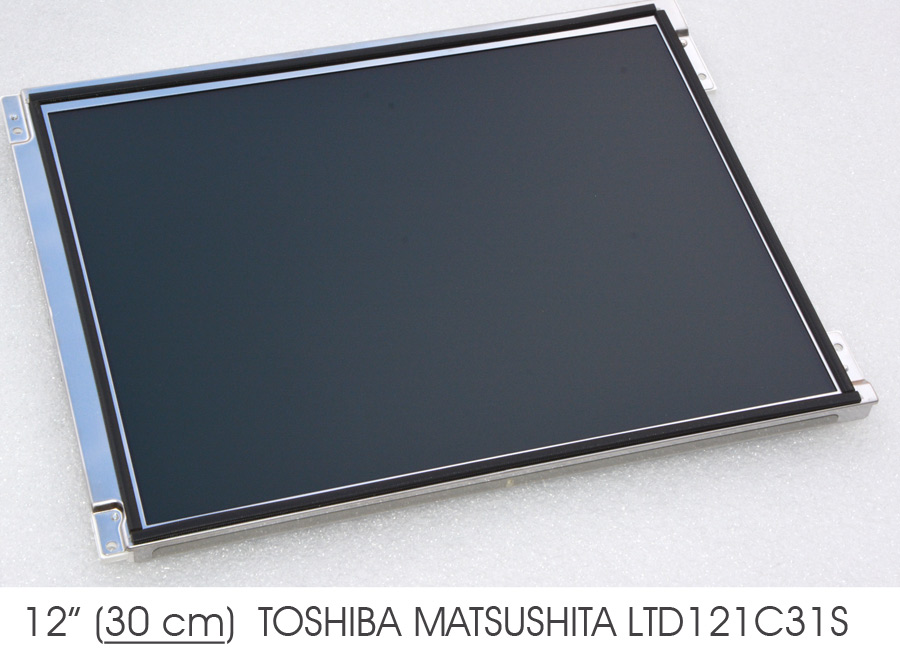

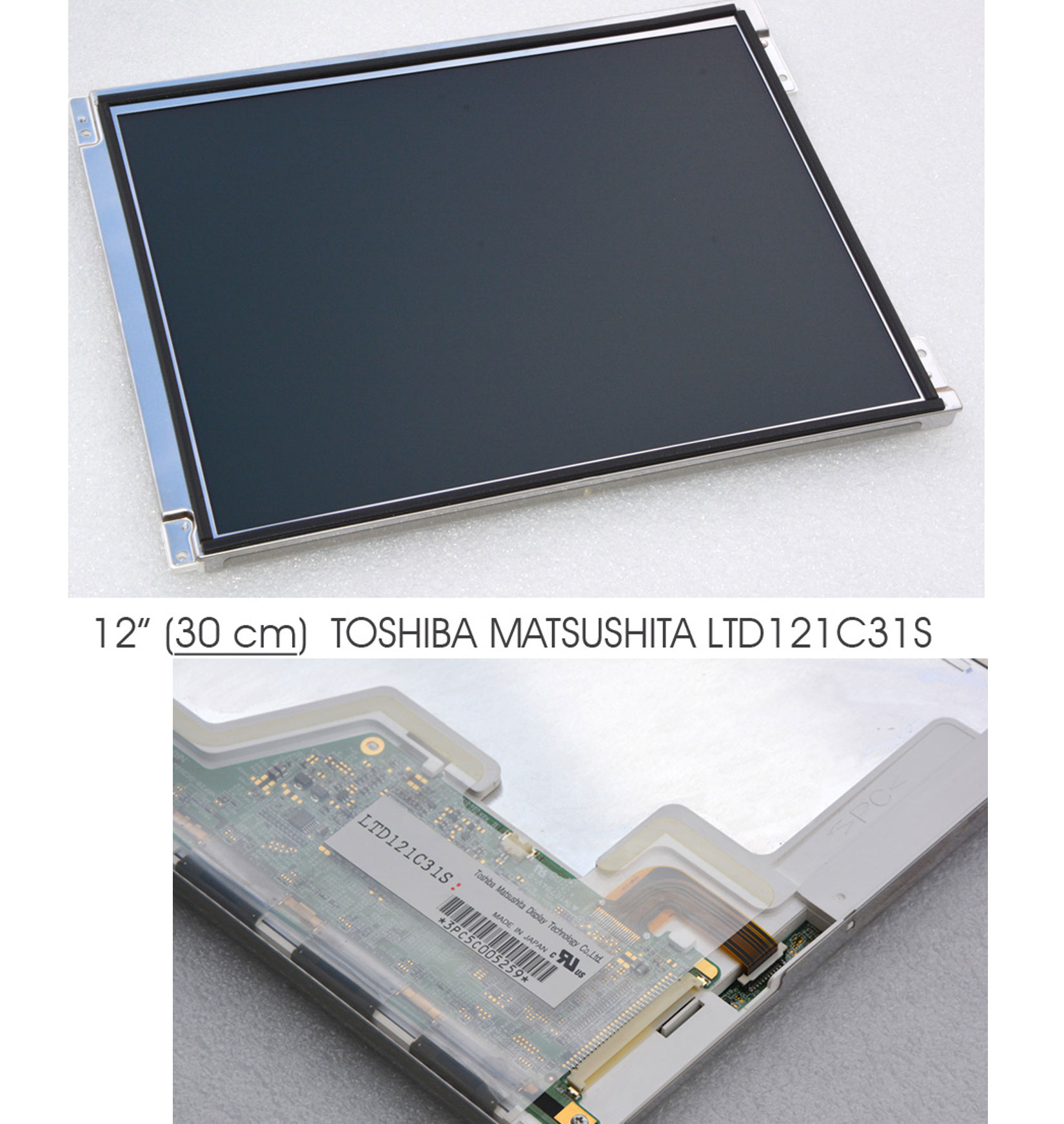

12″ 30cm TFT LCD Display LCD Panel Toshiba Matsushita LTD121C31S CCFL V614

Beschreibung

Toshiba Matsushita LTD121C31S 12.1″ 30cm Display
TFT-LCD, LCM ; 800×600
–
Panel Model: LTD121C31S
Diagonal Size: 12.1″ 30cm
Dot Resolution: 800(RGB)×600
Aspect Ratio: 4:3 (W:H)
Pixel Configuration: RGB Vertical Stripe
Dot Pitch (W*H): 0.1025×0.3075 mm
Weight: 670g (Typ.)
Active Area (W*H): 246.0×184.5 mm
Bezel Area (W*H): 249.0×187.5 mm
Outline Dimension (W*H): 278.3×209.0 mm
Outline Depth: 11.0 (Max.) mm
–
Brightness: 250 cd/m2 (Typ.)
Transmissive Contrast Ratio: 450:1 (Typ.)
Display Color: 262K
Lamp Type: CCFL
Lamp Amount: 2 pcs
Lamp Shape: Straight
Signal Interface Pins: 30 pins, 2 pins
