Touchscreen Controller ETP-SA4500G-G P-SAT4500G-G S4000UAGG S5002REGG 5-Wire 51
75,00€
inkl. 19% MwSt. zzgl. Versandkosten
Touchscreen Controller ETP-SA4500G-G P-SAT4500G-G S4000UAGG S5002REGG 5-Wire
2 vorrätig
Beschreibung

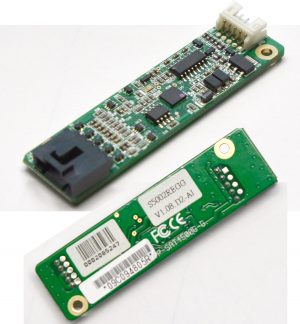

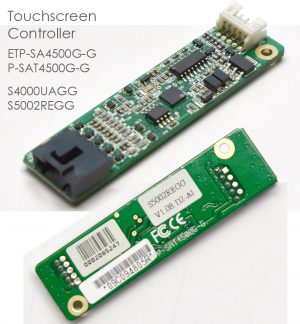

Touchscreen-Controller ETP-SA4500G G/S4000UAGG, P-SAT4500G-G S5002REGG
oder baugleich, 5-wire resistive, EETI/EGALAX
interne Lagernummer: POS_Pan
–
Hardware
– Power Requirements : +5VDC (max. 100mA, typical 70mA, 50mV peak to peak max ripple)
– Protocol USB: Max. 160 points/sec
– Report Rate USB: Max. 160 points/sec
– Response Time Max. 20 ms
– Max. resolution : 4096×4096
– Regulatory Approvals FCC-B, CE
– Pin Out Definition X, Y, X, Y
– Panel Resistance 200 ~ 900 ohm (pin to pin on the same layer)
– O/S support Windows, DOS, MAC, QNX, Android, Linux
–
-wire resistive touchscreen controller (EETI/EGALAX driver compatible)
–
Software Features
– Calibration Fast Full oriental 4 points position
– Compensation 1. Accuracy 25 points linearity position, 2. Edge compensation
– Draw Test Position and linearity verification
– Controller Setting 1. Support multiple controllers, 2. Dynamical add/ remove controllers, 3. Change controller interface without reboot
– Languages Support 10 languages for Windows
– Mouse Emulator 1. Right/ left button emulation, 2. Click/ drawing mode
– Sound Notification 1. No sound,2. Touch down,3. Touch up
– Double Click 1. Configurable double click speed, 2. Configurable double click area
– COM Port Support 1. Support COM1~COM256 for Windows and Linux, 2. Support COM1~COM8 for DOS
– Display Support 1. Support monitor/ display rotation, 2. Support multiple monitors, 3. Support split monitor
Zusätzliche Information
Gewicht | 0.3 kg |
---|
