Alphatron POC-227G Point of Care 22″ 55cm Touchscreen SSD L9400 1,86GHZ 8GB DDR3

Beschreibung

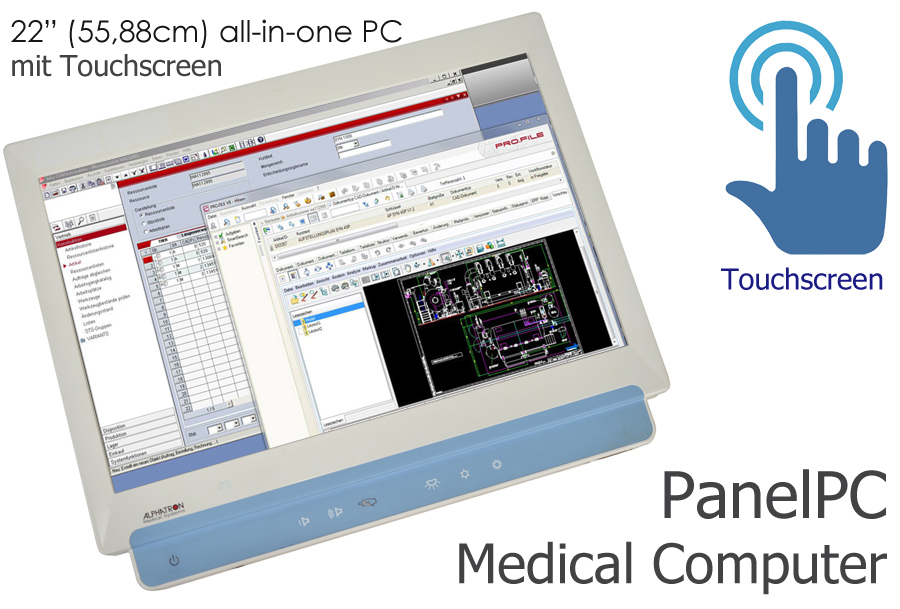

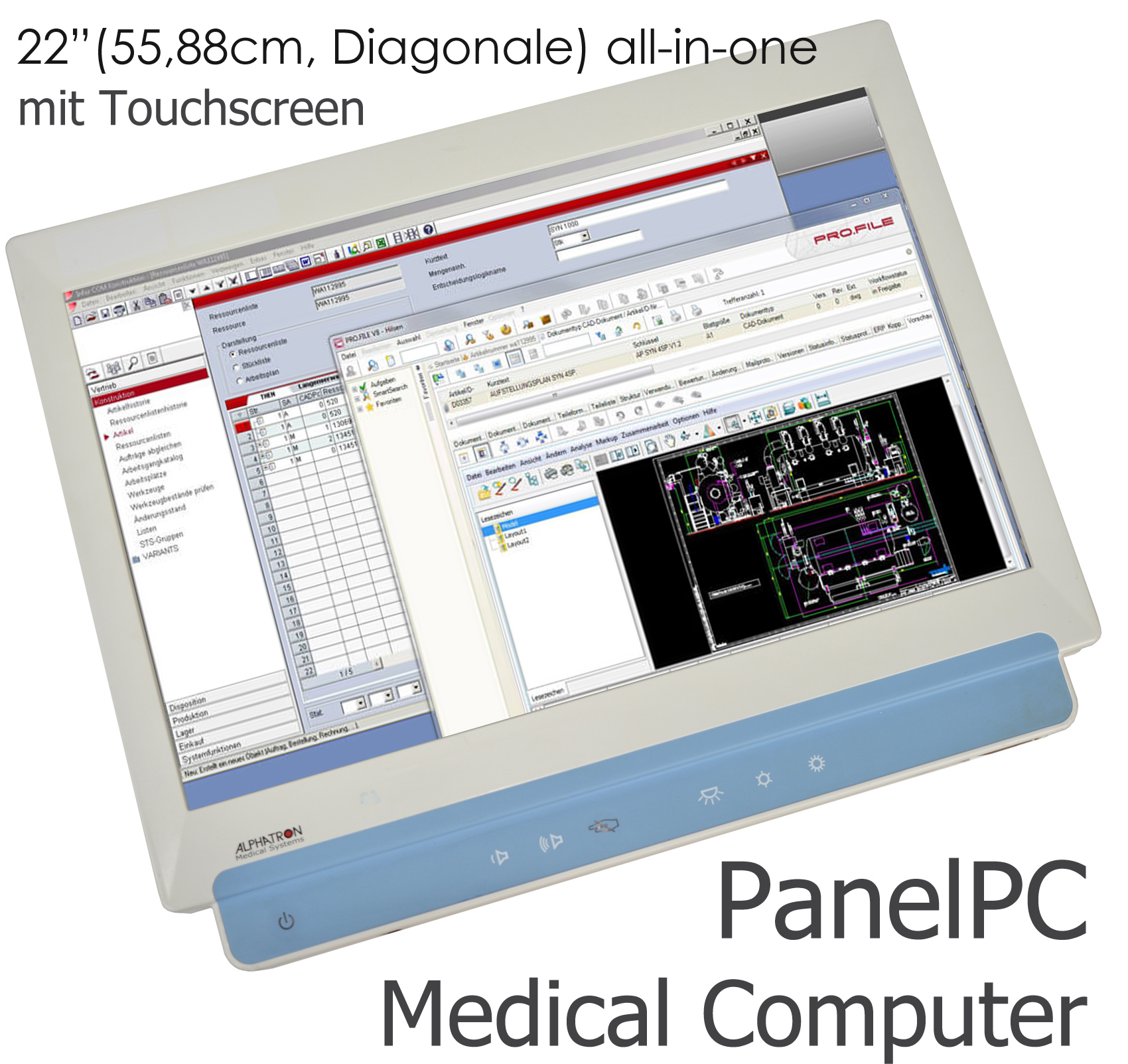

POC-227G Medizin 22″ (55cm) Touchscreen Terminal mit Intel Core 2 Duo CPU 1.86GHz. Fanless design. 120GB SSD Festplatte. 8 GB DDR3 RAM. DVD-RW (DVD Recorder) 4x RS-232 (isoliert), davon 1x RS-232 / 422/485.
All-on-one system for medical applications as digital radiology, anesthesia or endoscopyrunning in operating arenas, at bedside, nursing stations, or other places within the hospital or clinic.
The system hosts a built-in surface acoustic wave (SAW) touchscreen for ease of use; it can be wired with dual-gigabit connectors and configured for LAN teaming, or it can use the optional 802.11b/g/n wireless adapter with up to 300 Mbps of throughput. POC-227G features a rich selection of high speed I/O connectors and user-friendly function keys.
–

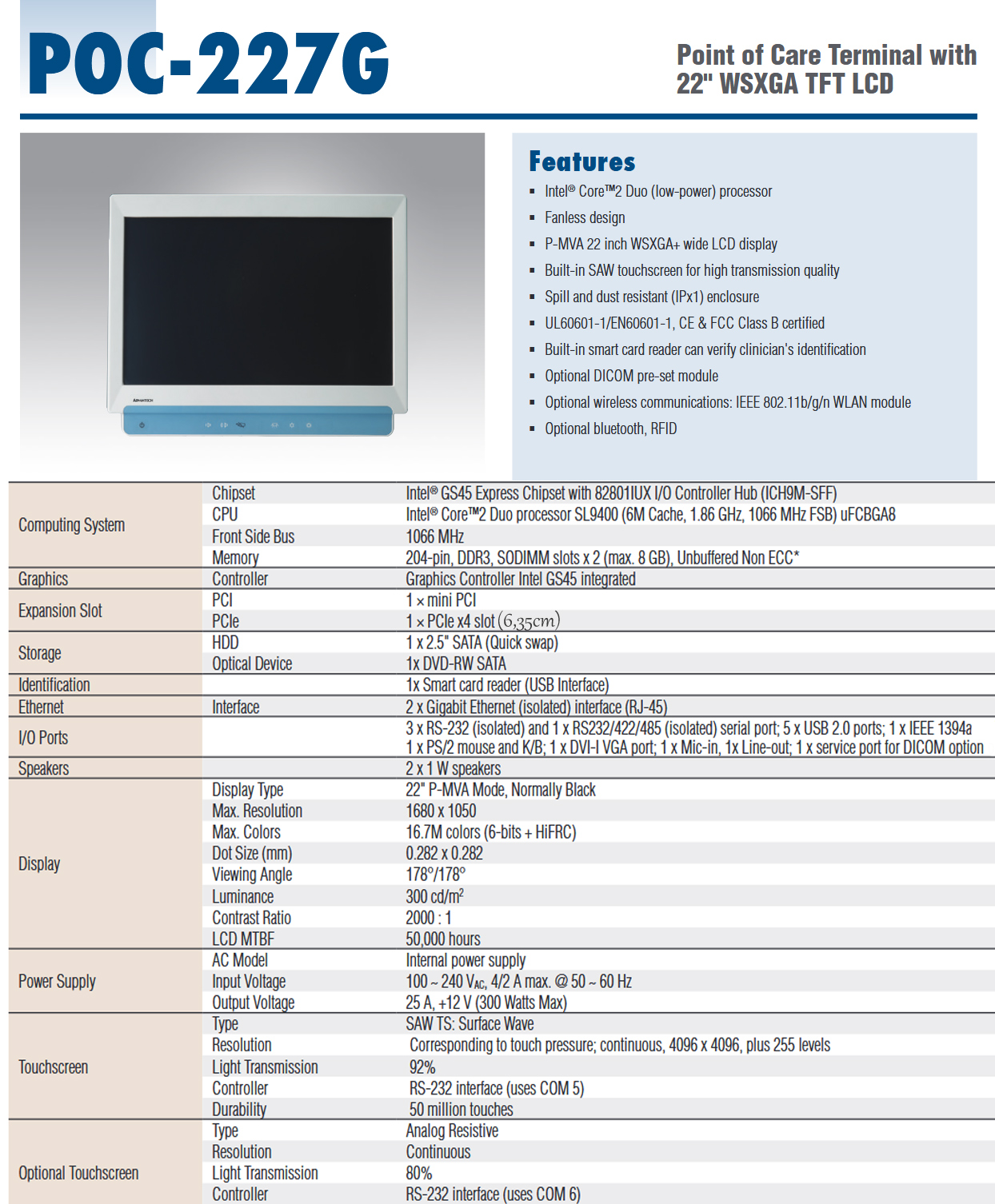

Display
Touchscreen Analog Resistive
22″ (55cm) Diagonale
Viewing Angle (H / V°): 178 / 178
Luminance (cd / m2): 300
Dimensions(mm): 0.282 x 0.282
Max. Resolution: 1680 x 1050
Max. Colors: 16.7M (RGB 6-bit + HiFRC )
Contrast Ratio: 2000 : 1
Display Type: 22″P-MVA Mode, Normally Black
–
Physical Specifications

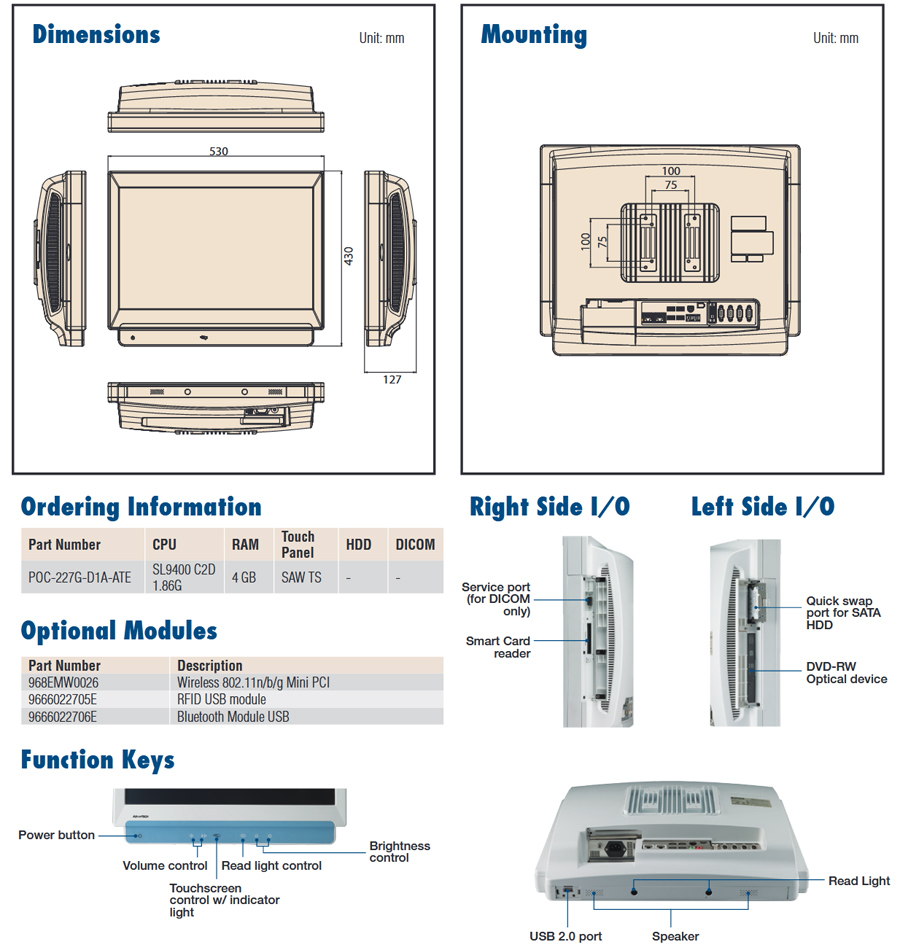

Dimensions (W x H x D): 530 x 430 x 127 mm
Weight: 12 kg

Storage
HDD: 1 x 2.5″ (6,35cm) SATA (Quick swap)
Optical Device: DVD-RW SATA
–
Ethernet
Interfac-e 2 x Gigabit Ethernat (isolated) interfaces (RJ-45)
–
Graphics
Controller Graphics Controller Intel GS45 integrated
–
Touchscreen
Light Transmission 0.92
Resolution: Corresponding to touch pressure; continuous, 4096 x 4096, plus 255 levels
Type: SAW TS: Surface Wave
Controller: RS-232 interface (uses COM 5)
–
Expansion Slot
Mini PCI: 1 x Mini PCI slot, supports type lllA Mini PCI
PCIe x4 slot 1
–

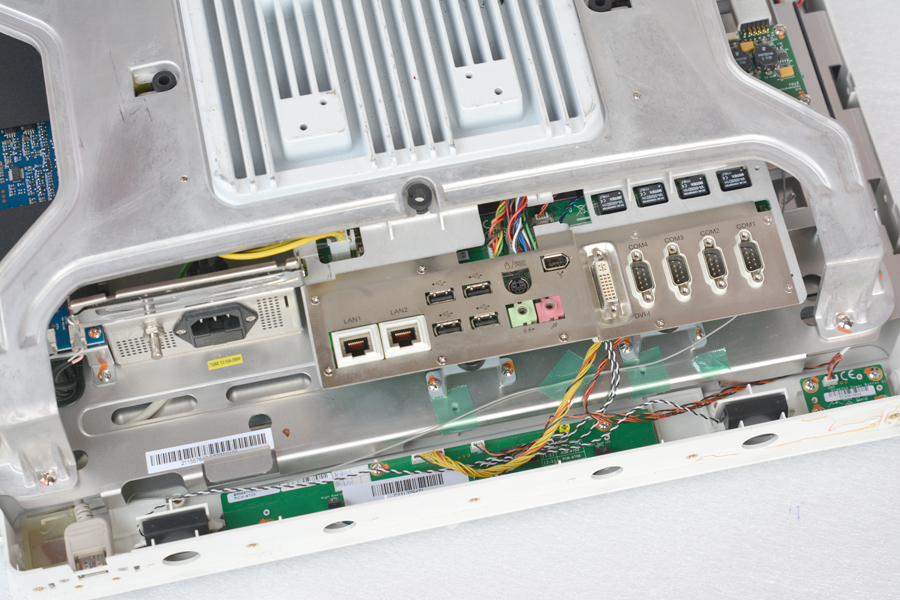

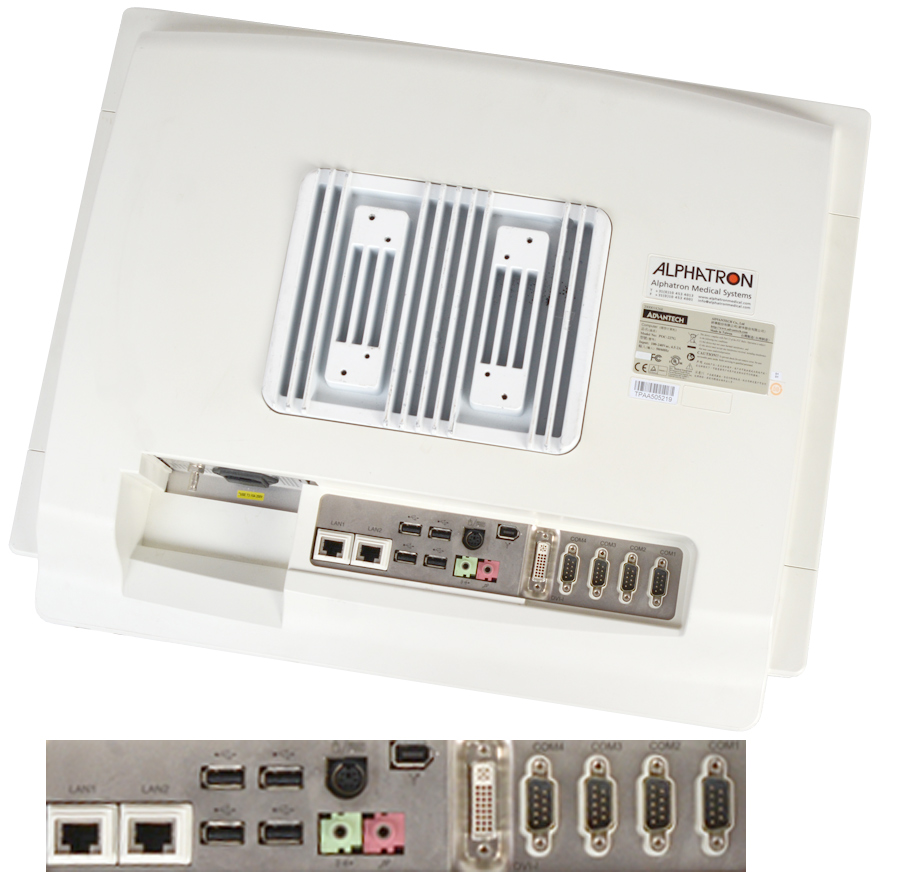

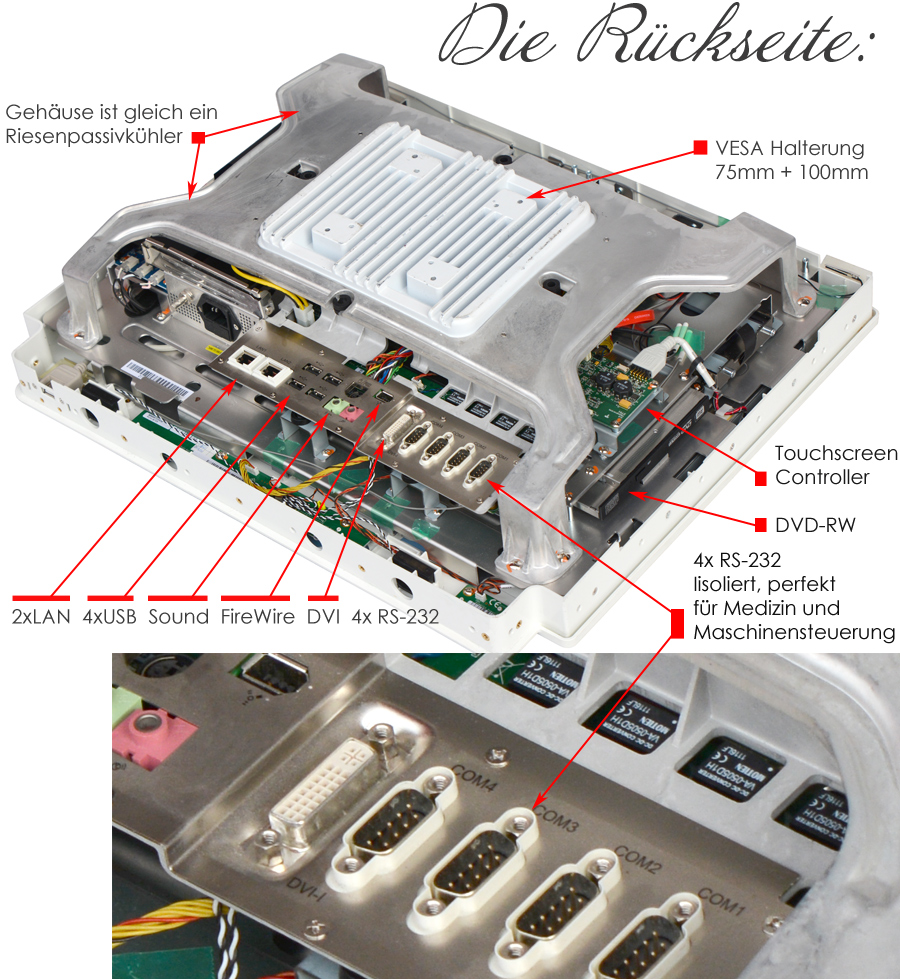

I / O Ports
USB 2.0 5 x USB ports
IEEE 1394
RS-232 (isolated)
RS-232 / 422 / 485 (isolated) serial port
PS / 2 mouse and K / B
DVI-I VGA port
Mic-in, Line-out
service port: 1 x service port for DICOM option only (for trained FAE only)
–
Computing System
CPU Intel Core 2 Duo Processor SL9400(6M Cache, 1.86GHz, 1066MHz FSB)uFCPGA8
Chipset Intel GS45 Express Chipset with 82801IUX I / O Controller Hub (ICH9M-SFF)
Front side bus: 1066 MHz
Memory: 204-pin, 8GB DDR3, SoDIMM slotsx2
–
Power Supply

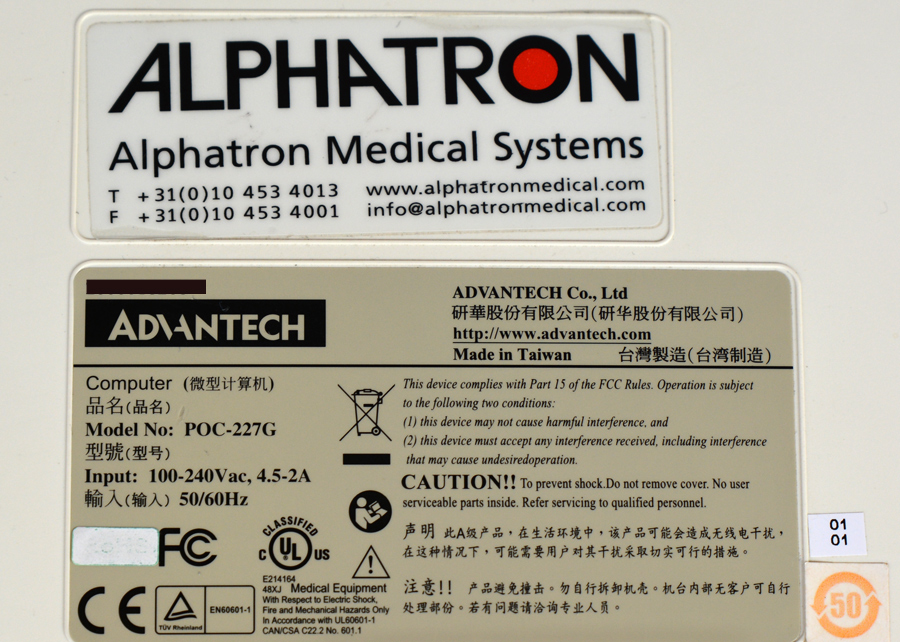

Input Voltage: 100 ~ 240 VAC, 4 / 2 A max.@ 50~60 Hz
Output Voltage: 25 A, +12 V (300 Watts Max)
