NetOptics PA-CU Port Aggregator Tap Net Optics 2x 10/100 Monitoring V335

Beschreibung

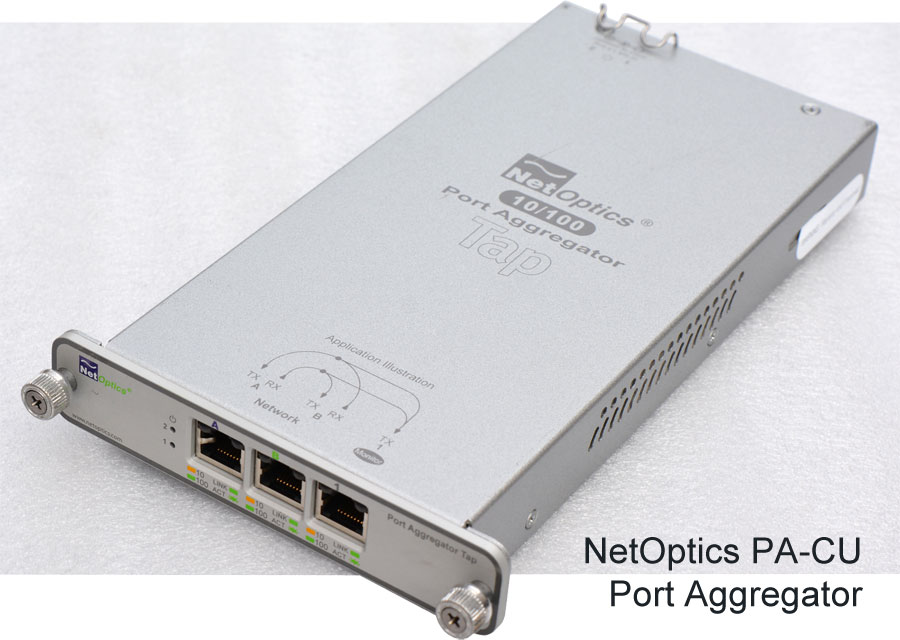

NetOptics PA-CU Port Aggregator
–
Net Optics’ Port Aggregator Tap is a simple plug-and-play solution addressing the fact that many monitoring systems, including most software-based solutions, only offer a single channel NIC, limiting full-duplex visibility. While adding a second NIC can help maintain data integrity and visibility, there is a tradeoff in flexibility and ease-of-use. An operating system and NICs that enable binding are often required to achieve the same functionality as the Port Aggregator Tap. In contrast, the Port Aggregator Tap requires no additional components or configuration on the monitoring devices. Typically, full-duplex monitoring with a network tap requires two NICs (or a dual channel NIC) – one interface for each side of the tapped full-duplex connection. The Port Aggregator Tap combines these streams, sending all aggregated data out one passive monitoring port. The best part of this innovation is the onboard memory to make sure traffic isn’t dropped during bursts.
–
Net Optics, MPN PA-CU
Data Transfer Rate: 100Mbps
Data Link Protocol: Ethernet, Fast Ethernet
Cabling Type: Ethernet 100base-Texas, Ethernet 10base-T
Dimensions (Wxdxh): 11.4 x 23.2 x 2.9cm
Interfaces: 2X Network-Ethernet 10base-T/100base-Texas-R&J Enterprises-45 Female, 1 X Monitoring-R&J Enterprises-45 Female
Type: Tap splitter
Connectivity Technology: Wired
Status Indicators: Link Activity, Power
Manual: usermanual.wiki/Net-Optics/NetOpticsPaCuArUsersManual494251.1491850008.pdf
